Suspended Platform for Mine

Send Message Request a Quote

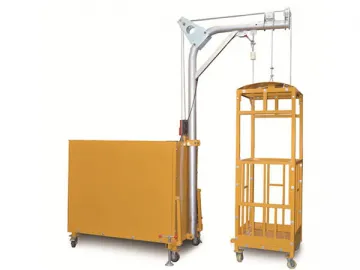

The M50 suspended platform for mine use is driven by a three-phase asynchronous motor, and its platform and is lifted by 2 independent steel ropes coupled with the guide pulleys and the front beam assembly. The product is designed with a safety lock to avoid rope-breaking dangers. Mainly operated via the ground-based control center, it can also be wirelessly remote controlled.

Due to the limited motor horsepower for rope reeling, the product offers maximum lifting height of 50m. It is safe and reliable, and features simple structure, low maintenance, and easy operation.

Utilized inside the mine well, the suspended platform can operate in all weather conditions, allowing users to rationally arrange their production plans and improve their working efficiency.

Technical Specifications

Material			Steel
Model			M50
Rated Capacity			350kg
Lifting Height			50m
Lifting Speed			8.2±0.5m/min
Platform Dimension(LWH)			8007001900mm
Suspension System	Rated Overhang of Front Beam		1300mm
	Height of Front Beam		2500mm
Hoist	Type		LTD8.0
	Motor	Type	Y2EJ90L4
		Power	1.8kw
		Voltage	According to your demand
		Rotation Speed	1400 r.p.m.
		Brake Torque	15 N/m
Safety Lock	Type		LSL30 (Centrifugal)
	Allowable Impulsive Force		20KN
Steel Wire Rope			Φ8.3 (2pcs)
Power Cable			1 pcs
