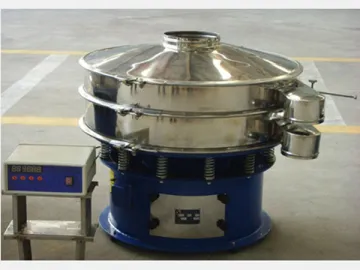

Rotary Vibrating Screen

RotaryVibrating Screen

The rotary vibrating screen is widely used for screening andfiltering in grinding, ceramics, chemicals, food, paper, metallurgy,pharmaceutical and environmental protection industries. It utilizes the unbalancehammer equipped in the motor shaft to convert the rotation of motor into threedimensional movement, namely horizontal, vertical andinclined movement. The three dimensional movement is then transferred to thescreen plate, which lead to extended involutemovement of the feedstock. For this reason, the screen is called rotary vibratingscreen.

Specifications

The phase angle between upper and lower hammers can be adjusted to vary themotion trail of feedstock in the screen mesh. By this means, the accuratescreening of feedstock is available. The screening fineness can be 28micrometers and filtering fineness can be 5 micrometers. The screen mesh iseasy to replace and possesses single layer and dual layer to choose. The rotaryvibrating screen has the features of light weight, small size and highefficiency.
