座式激振器

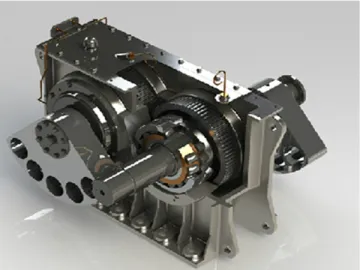

Seated Vibration Exciter

Our company has developed WJZZ series vibration exciter thatcombines advanced technique of the industry at home and abroad. It featureslight weight, small volume, simple structure, easy installation andmaintenance, long lifetime, thus offering a great exciter option for kinds ofvibrating equipment. The exciting force of seated vibration exciter ranges from 30KN to180KN.

TechnicalParameters

Model	Exciting force(KN)	Size (mm)													Spindle nose(mm)	Weight (kg)
Model	Exciting force(KN)	A	B	C	D	E	F	L	M	d	ф1	h	H	ф	Spindle nose(mm)	Weight (kg)
WJZZ-30-6	30		184	326	270	300	400	480	37 0	42	260	35	220	4-ф28	10 ×8	160
WJZZ-50-6 A	50		2 × 105	340	356	380	400	602	495	50	304	27	235	6 -ф28	14 ×9	242
WJZZ- 7 0-6 A	70		2 × 105	340	356	380	400	602	555	50	304	27	235	6 -ф28	14 ×9	270
WJZZ-100-6 A	100		2 × 105	340	410	380	400	642	550	50	380	32	265	6 -ф28	14 ×9	348
WJZZ-130-6 A	130		2 × 105	340	410	380	400	642	592	50	380	32	265	6 -ф28	14 ×9	381
WJZZ-160-6 A	160	140	340	240	460	475	320	592	524	50	456	40	350	8 -ф 37	14 ×9	475
WJZZ-100- 8A	100	140	340	240	460	475	320	592	524	50	456	40	350	8 -ф 37	14 ×9	475
WJZZ-1 3 0- 8A	130	140	340	240	460	475	320	592	594	50	456	40	350	8 -ф 37	14 ×9	527
WJZZ-180- 8	180	140	340	240	460	475	320	754	624	54	456	40	350	8 -ф 37	14 ×9	624

Technical Parameters Of Seated Vibration Exciter

Model	Exciting force(KN)	Size (mm)												Weight (kg)
Model	Exciting force(KN)	A	B	C	D	E	F	G	H	H1	H2	L	ф	Weight (kg)
WJZZ- 25 0- 8	250	155	170	190	530	1000	320	400	330	545	35	825	12- ф 33	1080
WJZZ- 300 - 8	300	155	170	190	530	1000	320	400	330	545	35	825	12- ф 33	1140
WJZZ- 40 0- 8	400	150	190	190	570	1000	350	400	350	590	40	892	12- ф 33	1320
WJZZ- 45 0- 8	450	150	190	190	570	1000	350	400	350	590	40	892	12- ф 33	1400
